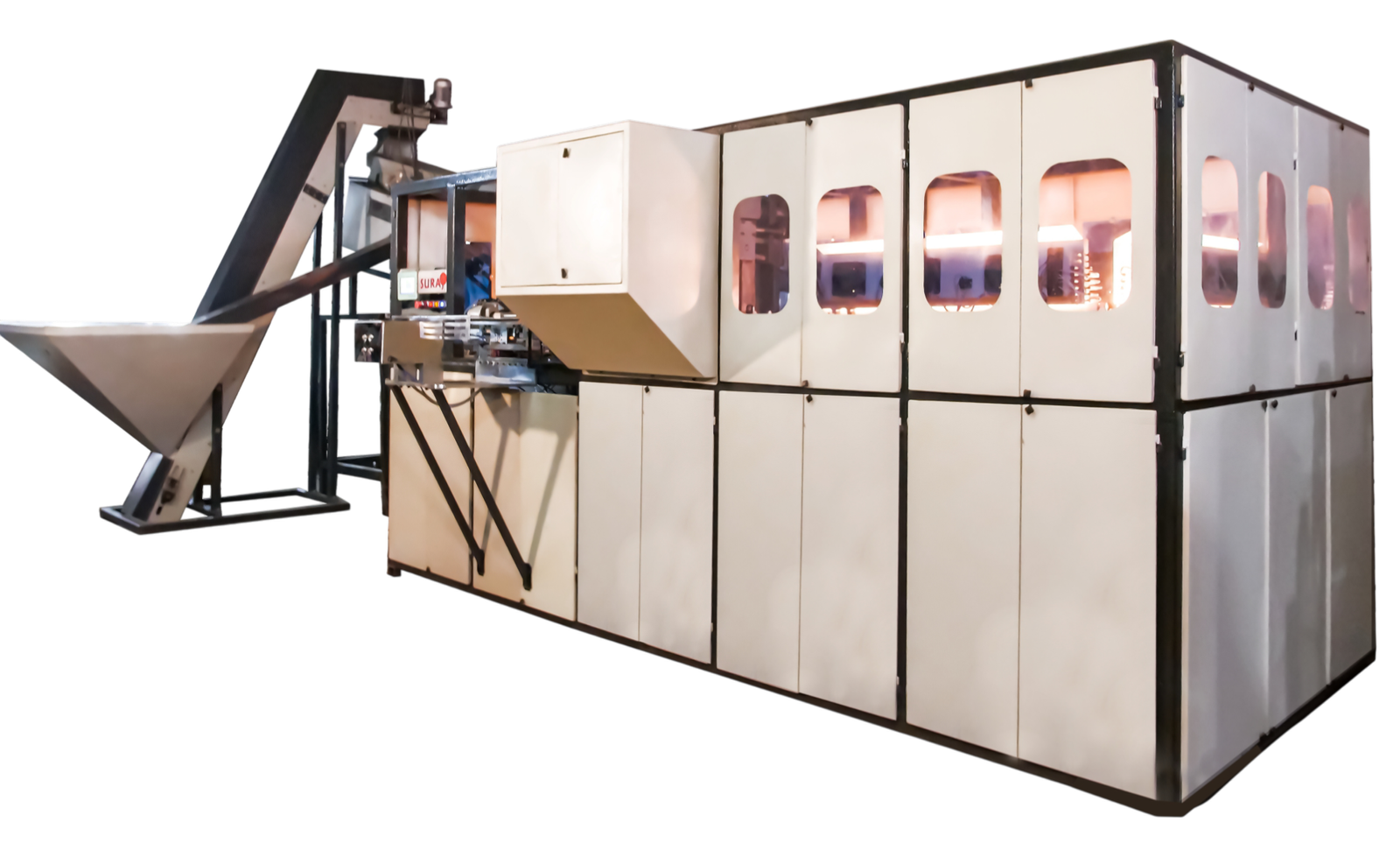

Fully Automatic Pet Perform Stretch Blow Moulding Machine

Fully Automatic Pet Perform Stretch Blow Moulding Machine

Equipped with intelligent heating control and stable mould clamping, the machine delivers smooth, fast, and highly efficient production. Its fully automated feeding and blowing system improves productivity while reducing labor cost and downtime.

  • High Output Performance — up to 7200 Bottles Per Hour
  • Available in 2, 4, and 6 Cavity configurations
  • Suitable for 50 ML to 2000 ML PET bottles
Get Quote

Technical Specification

Description SAB-500-4B SAB-500-6B SAB-1000-2B SAB-1000-4B SAB-1000-6B SAB-2000-2B
Product Size 50 ML – 500 ML 50 ML – 500 ML 100 ML – 1000 ML 100 ML – 1000 ML 100 ML – 1000 ML 200 ML – 2000 ML
Neck Diameter (Max) 25 MM - 28 MM 25 MM - 28 MM 25 MM - 28 MM 25 MM - 28 MM 25 MM - 28 MM 25 MM - 28 MM
Bottle Diameter (Max) 70 MM 70 MM 90 MM 90 MM 90 MM 110 MM
Output (Theoretical) 3600-4000 BPH 5400-6000 BPH 1700-2000 BPH 3400-4000 BPH 5400-6000 BPH 1400-1800 BPH
Product Height (Max) 250 MM 250 MM 300 MM 300 MM 300 MM 350 MM
Machine Connected Load 48 KW 60 KW 36 KW 48 KW 60 KW 36 KW
Mould 4 Cavity 6 Cavity 2 Cavity 4 Cavity 6 Cavity 2 Cavity
Air Requirement (For Machine Operation) 2M³/MIN@10KG/CM2 3M³/MIN@10KG/CM2 2M³/MIN@10KG/CM2 3M³/MIN@10KG/CM2 4M³/MIN@10KG/CM2 3M³/MIN@10KG/CM2
Air Requirement (For Blowing Operation) 2M³/MIN@25KG/CM2 3M³/MIN@25KG/CM2 2M³/MIN@25KG/CM2 3M³/MIN@25KG/CM2 4M³/MIN@25KG/CM2 3M³/MIN@25KG/CM2
Cold Water (For Mould & Heating System) 3M³/HRS @5°C 4M³/HRS @5°C 3M³/HRS @5°C 4M³/HRS @5°C 5M³/HRS @5°C 4M³/HRS @5°C
Area Required 6500×6500×3500 MM 7000×7000×3500 MM 7000×7000×3500 MM 8000×7000×3500 MM 8000×7000×3500 MM 8000×7000×3500 MM
Net Weight 5 Tonnes 6 Tonnes 6 Tonnes 5 Tonnes 7 Tonnes 6 Tonnes
