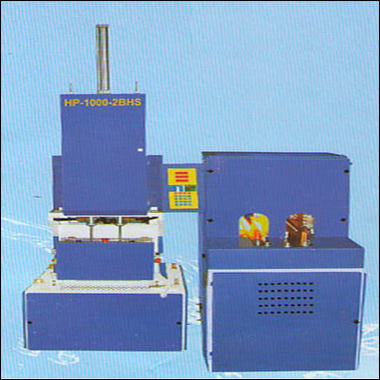

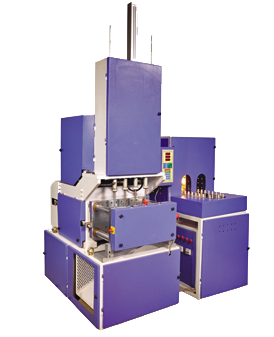

PET Stretch Moulding Machines of the AUTO DROP SERIES are equipped with Auto dropping systems and operates Semi-Automatic mode.
SPECIFICATIONS OF AUTO DROP SERIES MACHINES
HP-20-C
| Description Model | HP-1000-2BHS | HP-1000-4BHS | HP-2000-2BHS | HP-2000-2BHS | HP-2000-2JBHS |
| Product Size | 30-1000ml.Bottle | 30-1000ml.Bottle | 50-2000ml.Bottle | 50-2000ml.Bottle | 50-2000ml.Bottle/jars |
| Product Out Put | 900-1100 Bottles/hr | 1400-1600 Bottles/hr | 900 Bottles/hr | 1100-1400 Bottles/hr | 500-1100 Pcs/hr |
| Mould Cavity | 2 Cavity | 4 Cavity | 2 Cavity | 3 Cavity | 2 Cavity upto 1 Ltr. 1 Cavity upto 2 Ltr. |
| Neck Dia | 19-30mm | 19-30mm | 19-120mm | 19-30mm | 25-83mm |
| Heater Power | 10.5KW | 13.5KW | 10.5KW | 13.5KW | 13.5KW |
| Heater Type | I.R Rotary | I.R Rotary | I.R Rotary | I.R Rotary | I.R Rotary |
| Clamping Stroke | 150mm | 150mm | 200mm | 200mm | 200mm |
| Working Pressure | 6-8 Kg/cm2 | 6-8 Kg/cm2 | 6-8 Kg/cm2 | 6-8 Kg/cm2 | 6-10 Kg/cm2 |
| Blowing Pressure | 22-25 kg/cm | 22-25 kg/cm | 22-25 kg/cm | 25-30 kg/cm | 25-30 kg/cm |
| Air Consumption Machine | 1 M3/Min | 1.3 M3/Min | 1.3 M3/Min | 1.5 M3/Min | 1.5 M3/Min |
| Operation | hydro-PNEU | hydro-PNEU | hydro-PNEU | hydro-PNEU | hydro-PNEU |
| Staff Required | 2 Person | 2 Person | 2 Person | 2 Person | 2 Person |
| Area Required For machine | 2 mtr x 3.5 mtr | 2 mtr x 3.5 mtr | 2 mtr x 3.5 mtr | 2 mtr x 3.5 mtr | 2 mtr x 3.5 mtr |
| For Utility | 3mtr x 5mtr | 3mtr x 5mtr | 3mtr x 5mtr | 3mtr x 5mtr | 3mtr x 5mtr |
