SEMI AUTOMATIC

These PET bottle making machines operate in Semi-Automatic Mode. Designed for manufacturing bottles from 25ml. to 25 Ltr.

SPECIFICATIONS OF SEMI AUTOMATIC PET BLOW MOULDING MACHINE

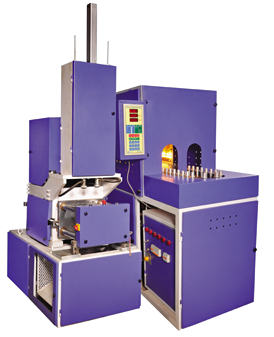

Semi Automatic Blow Moulding Machine - HP-2000-2B/2JB

HP-2000-2B/2JB

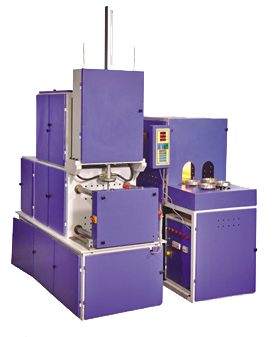

HP-5000-JB - Semi Automatic PET Bottle Moulding Machine

HP-5000-JB

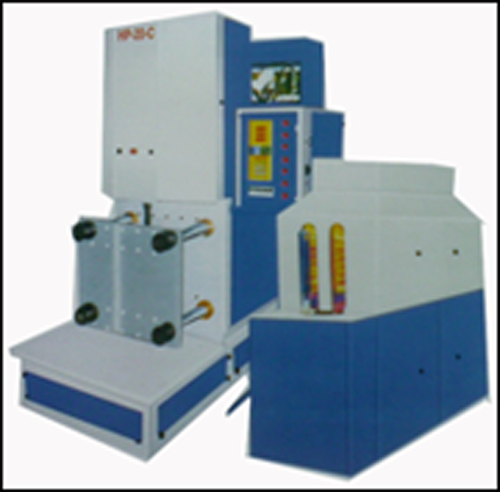

HP-20-C PET Stretch Moulding Machines

HP-20-C




Description Model HP-1000-2B HP-2000-2B/2JB HP-5000-JB HP-10-C HP-20-C
Product Size 30-500ml 50-3000ml B/jar 50-7.5ltr. B/jar 5-15ltr. B/jar 10-25ltr. B/jar
Product Out Put 600-720BPH 700 BPH/ 450j/h 700 BPH/ 350j/h 120-240 BPH 90-160 BPH
Mould Cavity 2 Cavity 2 Cavity 2 Cavity 1 Cavity 1 Cavity
Neck Dia 19-30mm 19-30mm 19-120mm 52-135mm 52-135mm
Heater Power 7.5KW 7.5KW 13.5KW 12KW 18KW
Heater Type I.R Rotary I.R Rotary I.R Rotary I.R Rotary I.R Rotary
Clamping Stroke 150mm 200mm 250mm 300mm 350mm
Working Pressure 6-8 Kg/cm 6-8 Kg/cm 6-8 Kg/cm 6-8 Kg/cm 6-10 Kg/cm
Blowing Pressure 22-25 kg/cm 22-25 kg/cm 22-25 kg/cm 25-30 kg/cm 25-30 kg/cm
Air Consumption Machine 0.7 M/Min 0.8 M/Min 0.9 M/Min 1 M/Min 1.6 M/Min
Operation hydro-PNEU hydro-PNEU hydro-PNEU hydro-PNEU hydro-PNEU
Staff Required 2 Person 2 Person 2 Person 2 Person 2 Person
Area Required For machine 2 mtr x 3.5 mtr 2 mtr x 3.5 mtr 2 mtr x 3.5 mtr 4 mtr x 4 mtr 4 mtr x 4 mtr
For Utility 3mtr x 5mtr 3mtr x 5mtr 3mtr x 5mtr 3mtr x 5mtr 3mtr x 5mtr
