AUTO DROP SERIES

Hot Fill Machines are designed for operating in the semi-automatic mode and have the Auto Drop feature and used for manufacturing PET bottles and jars of size 25ml to 25 ltr. capacity.

SPECIFICATIONS OF HOT FILL MACHINES

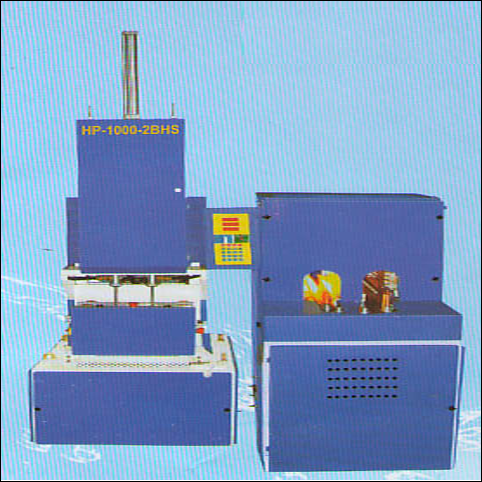

Description Model HP-1000-2BHS
Product Size 30-1000ml.Bottle
Product Out Put 900-1100 Bottles/hr
Mould Cavity 2 Cavity
Neck Dia 19-30mm
Heater Power 10.5 KW
Heater Type I.R Rotary
Clamping Stroke 150mm
Working Pressure 6-8 Kg/cm2
Blowing Pressure 22-25 kg/cm2
Air Consumption Machine 1 M3/Min
Operation hydro-PNEU
Staff Required 2 Person
Area Required For machine 2 mtr x 3.5 mtr
For Utility 3mtr x 5mtr
